NT00C NT00 500V 4-160A
| Model 型号 | Cross Reference of China 中国相关交叉引用型号 | Rated Voltage 额定电压(V) | Rated Current 额定电流(A) | Dimension 尺寸(mm) | Weight 重量(g) | |||||

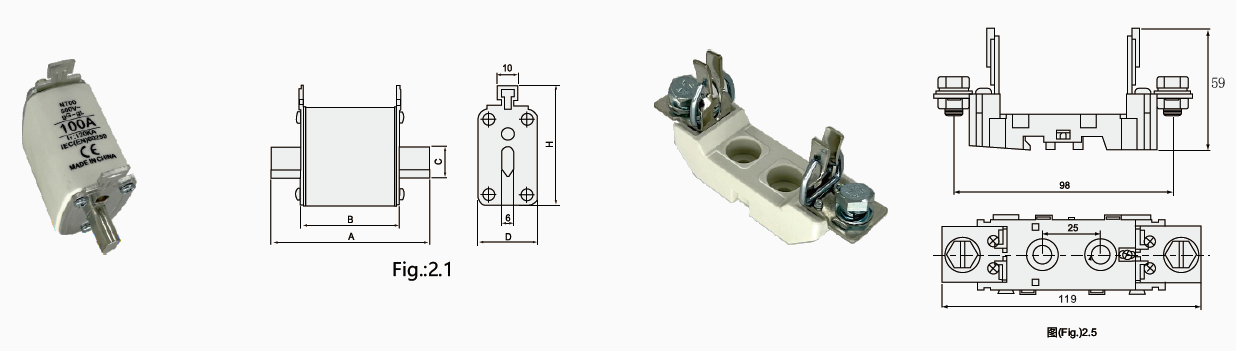

| Fig. | A | B | C | D | H | |||||
| NT00C | RO30A 3NA3 RT16-000 RT20-000 | 500 | 4-100 | 2.1 | 78 | 48.5 | 15 | 21 | 51.5 | 116 |
| NT00 | RO31 3NA3RT16-00 RT20-00 | 500 | 4-160 | 2.1 | 78.4 | 49.5 | 15 | 30 | 57 | 170 |
